Clario Audio ecIc52-F Altavoz de techo
RMS POWER
SPL CONT. / PEAK
FREQUENCY RESPONSE
DIAMETER

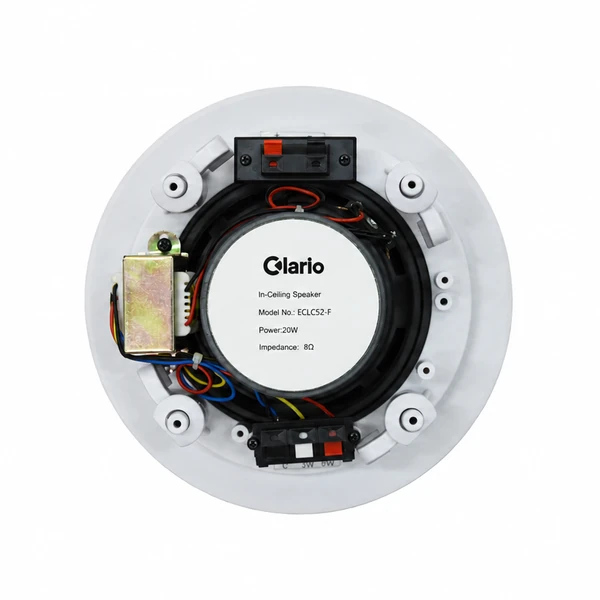

ECLC52-F integrates visually into the ceiling and distributes music and voice with clarity. An efficient solution for commercial, hospitality, and residential projects.
● 5.25” PP woofer + 1/2” PEI tweeter

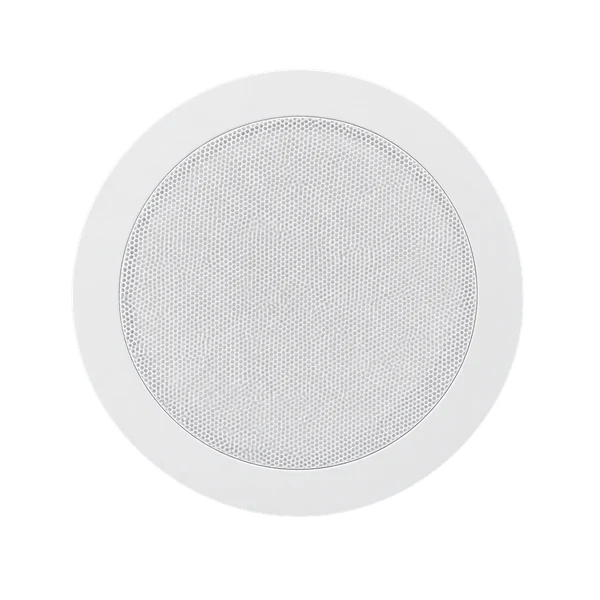

● Discreet white grille and flush-mount installation
● 100 V power selector and 8 Ω mode
Designed for distributed installations where quality, uniform coverage, and minimal visual presence are essential.
| System | 2-way, flush-mount |
| Woofer / Tweeter | 5.25” PP / 1/2” PEI |
| Power | 20 W |
| Impedance | 8 Ω |
| 100 V Taps | 20 / 15 / 10 / 5 / 2.5 W |
| Sensitivity | 86 dB (1 W / 1 m) |
| Frequency Response | 75 Hz–20 kHz |
| Maximum SPL | 102.8 dB continuous / 105.8 dB peak |
| Dimensions | Ø202.5 × 90.8 mm |
| Cutout / depth | Ø166 mm / 79 mm |

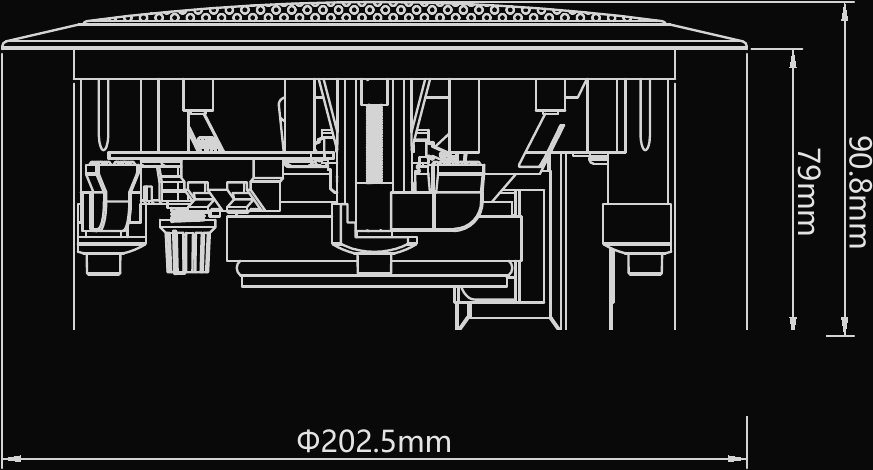

Depth: 79 mm · Diameter: Ø202.5 mm
Mark and make a Ø166 mm circular cutout in the ceiling.

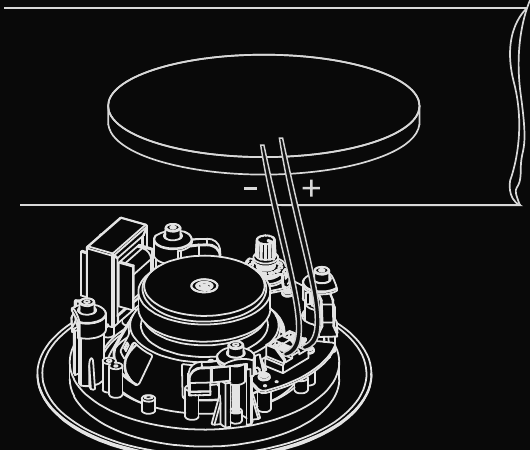

Connect the wiring, select the power setting, and insert the speaker.

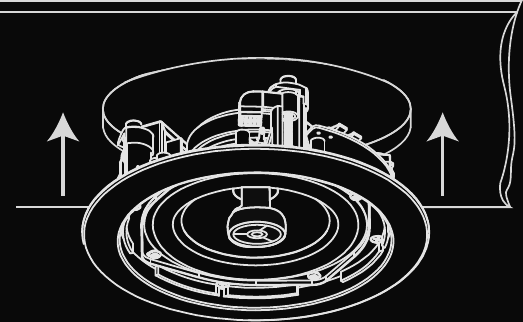

Tighten the mounting clamps and fit the front grille.
The clamp mounting system ensures fast and secure installation in ceilings made of different materials.
We help you define quantity, distribution, amplification, and line configuration for your installation.
